Embedded HMI

In addition to meeting the modular requirements of customers in terms of product form, as a product design team that has been deeply engaged in the field of human-machine interface systems for many years, Chipswork can provide customers with ODM services for customized HMI systems and GUI interface systems based on their product design needs.

The module-level and system-level HMI products provided by Chipswork can enable customers to minimize the development cost in the interactive part of their terminal product design, reduce quality problems and disputes in the mass production process, and allow customers to focus on the research and development of their core technology solutions.

Touch Display

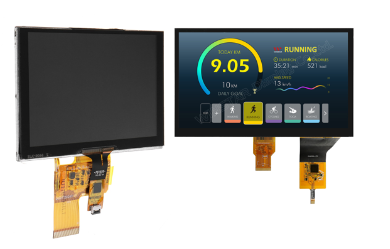

In order to shorten the supply chain and reduce quality disputes in the production process of customers.Generally,Chipswork will bond the touch screen and display screen together. Shipping in the form of modules can not only reduce the overall cost, but also shorten the customer's material preparation cycle and reduce quality disputes in the later stage.

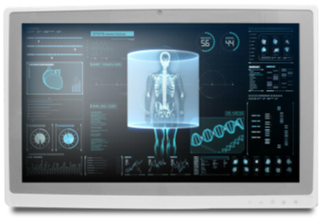

At the same time, based on the touch display module, different customers will add other components according to the requirements of the whole machine design and assembly, such as chassis, sheet metal parts, film buttons, PCB boards, etc., we call this kind of product Open Frame, if based on the touch display module, adding the AD board and the front and rear shells, this is a complete Touch Monitor, supporting standard VESA mounting methods. We can also support customers to customize their own LOGO on the Monitor.

Customized HMI System）

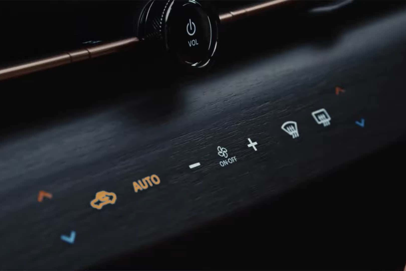

As the most frequently used interaction mode in daily work and life, haptic sense has become the most common control mode between users and machinery and equipment, in addition to the PCAP as the input device in the use scenarios with display that we see in daily life, there are also mechanical buttons, infrared switches, etc. are gradually being replaced by capacitive methods. In addition to the obvious improvement in the user experience, the design of the touch scheme also brings a revolution in the appearance design, which can design more beautiful products, and at the same time make the equipment more outstanding in terms of reliability such as waterproof and stain resistance.

In the process of cooperation with top companies in different industries, our engineers have accumulated a lot of experience in product design and development, and at the same time, they have also made in-depth thinking about the pursuit and goals of these top customers in product design, so that we can help our customers achieve competitive product design from the perspective of product realization in the selection of solutions at the beginning of design, combined with our mastery of basic technology.

The complete interactive system includes two aspects of user input and device feedback, in the input mode, not only through touch, but also including traditional mechanical methods or voice gestures, etc., the feedback of the device includes the confirmation of the input result and the feedback of the device execution result, including through the sense of touch (vibration feedback), vision (display, LED indication, etc.) and sound (buzzer). Therefore, by analyzing the common interaction requirements, we summarize the system as follows:

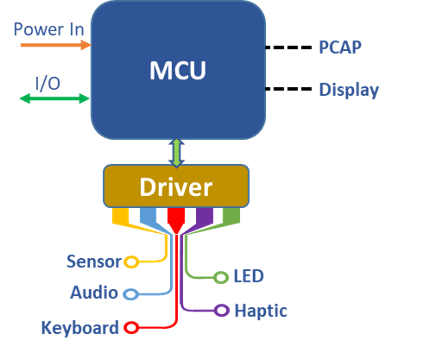

In the system shown in the figure, Chipswork recommends using an Infineon or Microchip MCU as the primary processor.

With the increasing popularity of users' demand for interactive differentiation, customers' product forms have become richer. At the same time, a complete interactive system includes not only hardware and software, but also the corresponding structural components and even optical components. In order to meet the customized system requirements of different customers for interaction, we can provide customers with:

Successful Case

GUI System

The graphical user interface (UI) is an interface display format for human-machine titerface, allowing users to manipulate on-screen icons or menu options using input devices such as a mouse, keyboard, touchscreen, etc., to select commands, invoke files, launch programs, or perform some other daily task. The user interface (UI) is the main feedback method between the device system and the user, and the UI can display the corresponding function menus and device status of the device to the user through visual graphics, and what you see is what you get. In addition to the accuracy of user interaction and execution efficiency, for system developers, how to quickly develop user graphical interfaces is a key factor to consider when choosing a system solution.

Focusing on the customer's HMI needs, our team of engineers can help customers develope a complete HMI system including UI. The basis for this support is based on the key chip partners Infineon (Traveo and PSoc) and Thorsianway (GC family).

Applications
